Application:

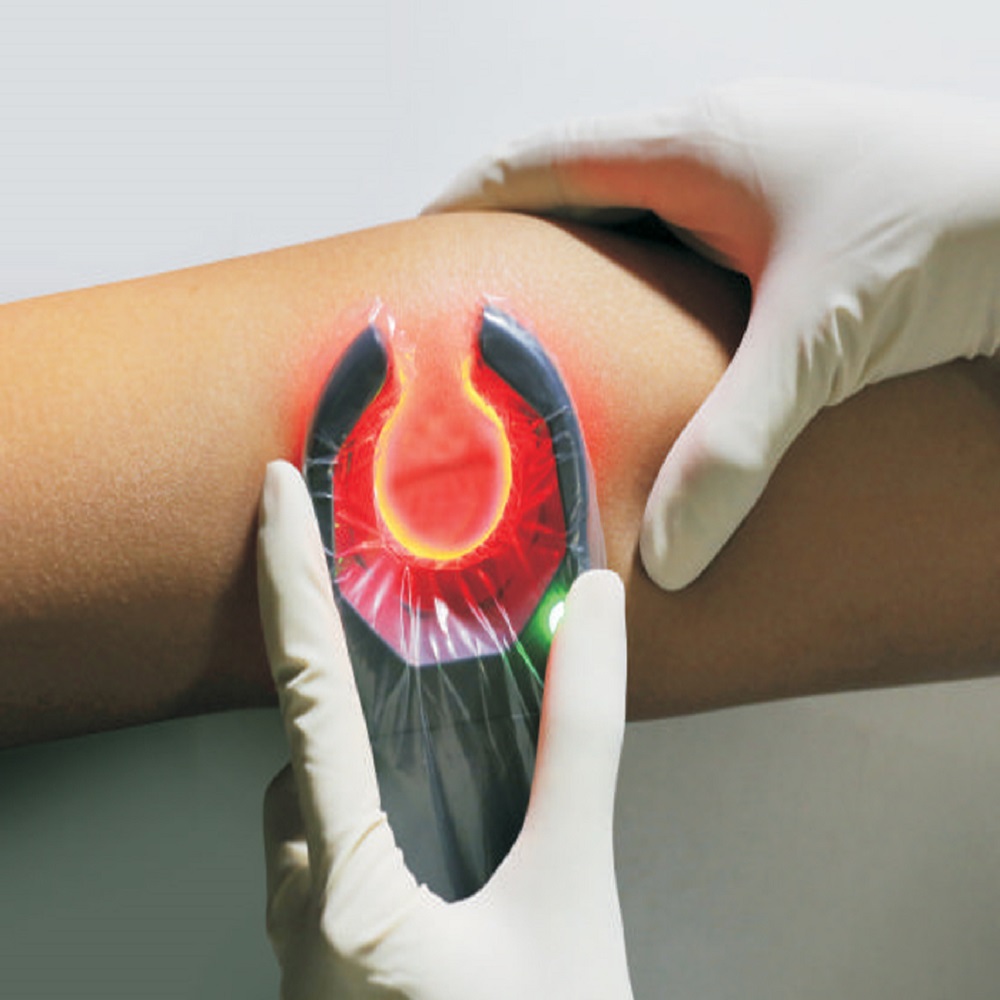

Portable vein finder is for easy visualisation of veins in adult, pediatric, geriatric, obese and dark skin patients with difficult venous access.

It works on transverse illumination technology: light beams from a circular LED array penetrate the skin and act as a light source to achieve deep illumination of subcutaneous tissues.

Specification:

• Number of LED’s: 22 orange, 8 red
• Functional opening: 17 mm
• Viewing diameter: 33 mm
• Rechargeable battery: lithium ion, 3.7V, 1150mah
• Battery charger: 110-240 V AC input, 5V DC output 750mA
• Battery backup: 1½ hours continuous use
• Dimensions: 125 x 65 x 22.7 mm
• Weight: 90 g
