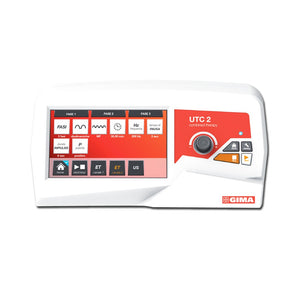

Electrotherapy/Ultrasound Combined

Application:

UTC 2 is a programmable driver unit for ultrasound transducers with working frequencies from 1 up to 3 MHz together with 2 channels of electrotherapeutic current. UTC 2 delivers continuous or modulated ultrasound with programmable intensity and delivery time, suitable for thermo therapeutic deep treatment of different pathologic conditions. UTC 2 transducer handpieces can be used under water. UTC 2 delivers Dyadinamic, Faradic, Galvanic, Impulsive, T.E.N.S. and Bipolar electrotherapeutical currents.

Specification:


• GIMA UTC 2
• MADE IN ITALY
• High brightness graphic touchscreen display
• Intuitive icons interface
• Controls of unit by multifunction knob, keys or touchscreen
• Possibility to upgrade
• Wide range of preset protocols
• Customized programmes
• Multi frequency handpieces
• Automatic identification of the connected accessory
• Continuous or pulsed delivery
• Combined with electrotherapy
• Sequence of treatment phases planning for each channel
• Independent channels
• Safety control blocks the output current in case of accidental disconnection of electrodes
• 6 language software: GB, FR, IT, ES, DE, PT

Technical Specifications:


• Output frequency (MHz): 1.0 to 3.0
•  Max intensity (W/cmq): 3.0
•  ET channels: 2
•  Max output direct current (mA) 30
•  Max output pulse current (mA) 70
• Max output voltage (Vdc) 10
• Power supply (Vac/Hz) 90-240 / 50-60
• Electrical input power (VA) 70
• Standard accessories
• 1-3 MHz ultrasound head Ø 35 mm
• Connecting cable for electrotherapy 1-2 (28303)
•  4 rubber electrodes 120x80 mm
•  4 rubber electrodes 45x60 mm
•  3 velcro elastic belt:
     - 8 x 40 cm
     - 8 x 60 cm
     - 8 x 100 cm
• Power cable 2 m
