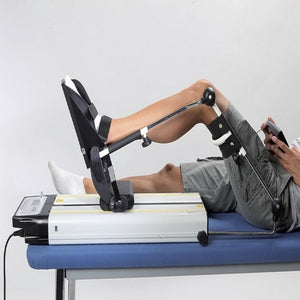

Continious Passive Motion CPM
Therapy & Exercise Equipment

Continious Passive Motion CPM

Ref: 5419
Categories : Mobility, Rehabilitation & Patient Transport
$4,700.00
Quantity
Free Delivery Within Beirut
Same-day or next-day delivery available for in-stock items.
Nationwide Delivery Across Lebanon
We deliver to hospitals, clinics, and homes throughout Lebanon. Charges outside Beirut depend on location and equipment size.
Flexible Payment Options
Cash on delivery for individual orders, bank transfer for institutional purchases. Quote requests welcome for bulk and custom orders.

Application:

This equipment allows the knee and hip to be mobilized through a flexo-extension
movement.

Specification:


  • It is operated by a direct current motor controlled by a circuit board with microprocessor
  • On the outside, there is a fixed keypad which is used to program each function, and a floating keypad for the patient to stop and start the movement via the STOP and START keys that perform the same functions as those located on the fixed keypad
  • The top part of the equipment is the area where limbs are placed on; this can be adjusted according to the limb size;to perform an adjustment you need to know the length of the patient's limb, measured from the trochanter major to the ankle bone
  • Knee and hip mobilization
  • Speed control
  • Workout duration control
  • Resistance
  • Pause during flexion
  • Adjustable foot rest.Knee movement range: -10° ÷ 120°
  • Hip movement range: -7° ÷ 115°
  • Repetitions at extension limitTechnical Spec
  • Technical Spec.Power supply: 85 ÷ 260 V - 50 ÷ 60 Hz
  • Electrical safety: Class 1 B Standard EN 60601-1
  • Electromagnetic compatibility: Group 1 B Standard EN 60601-1-2
  • Classification: as per EEC Directive 93/42 Class IIa
  • Net weight: 9.5 Kg
  • Packaging Dimensions (LxLxH): 105 x 40 x 37h cm
